Helium Miner Antenna – 915MHZ
This is 915MHZ LoRa Omni antenna that is compatible with all Helium Miner hotspots in Australia and is suitable for outdoor or indoor use. The Industrial grade construction and durable fiberglass radome provide excellent waterproof resistance and high temperature performance.
The Helium Miner IoT 5.8dBi Omni Antenna is recommended as a direct replacement for your factory antenna to maximize HNT rewards and expand your Helium Miners coverage.
Helium Miner Antenna Specifications
| Electrical specifications | |
| Frequency Range(MHz) |
915MHz |
| Impedance(ohm) |
50 |
| Gain (dBi) |
5.8 |
| Polarization |
Vertical |
| Radiation |
Omni |
| VSWR |
≤1.5 |
| Maximum input power (W) |
50 |
| Mechanical specifications | |
| Connector |

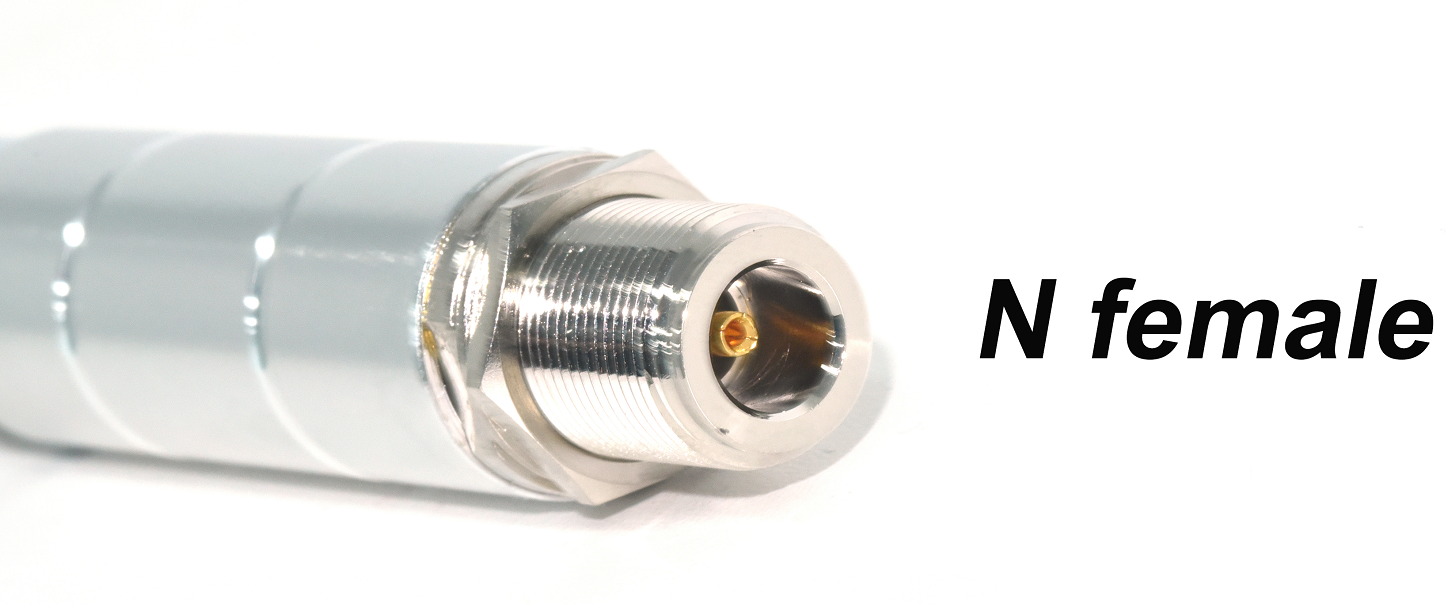

N-Female |
| Height |
600mm |
| Radome Material |
FiberGlass |
| Color |
White |
| Weight |
0.4Kg |
| Operating temperature (℃) |
-50～80 |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 60 × 10 × 10 cm |
| LMR240 Cable | N Male – RPSMA x 5m, N Male – RPSMA x 10m |
